Castor wheels Ø 250 mm
Type castor wheel|L: 135, W: 110, H: 289 (mm)|Article code: 75.174.116.250
Price per item
:
€ 79,95
€ 96,74 inc. VAT
Quantity
Specifications
Article code:
75.174.116.250
Length (mm)
135
Width (mm)
110
Height (mm)
289
Loading capacity (kg)
500
Material
elastic rubber
Top
base plate 135x110 mm
Bolt hole spacing
105x80 mm
Bolt hole
Ø 11 mm
Colour
black
Type
castor wheel
Implementation
Ø 250 mm
Temperature resistance
-20/+85°C
Article arrangement
New
EAN Code (Gtin):
8719424214277
Description

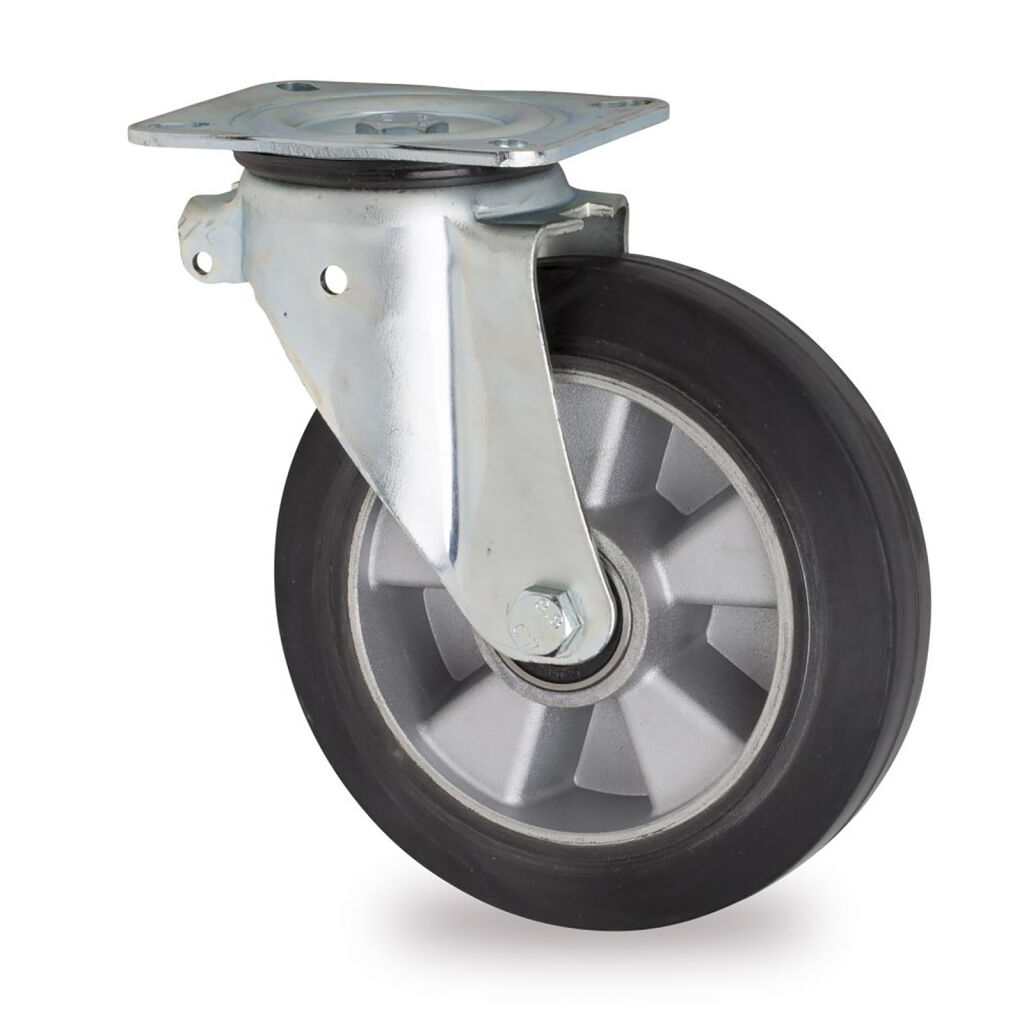

Swivel castor, Ø 250mm, elastic rubber tyre, 500 kg.
elastic rubber tyre, with aluminum wheel centre, precision ball bearing,
Advantages: Versatile use with excellent rolling properties. Low-noise and vibration-damping.
Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal and chemical companies, roll containers for medium-heavy loads, tool trolleys, warehouse carts.
Suitable surface: Almost any surface. Uneven surfaces such as clinker bricks, damaged floors and obstacles such as thresholds.
Suitable environment: Dry and not permanently damp. With alcohol, glycol and many acids, bases and chemicals.
Wheel diameter (mm): 250
Wheel width (mm): 50
Load capacity (kg): 500
Construction height (mm): 289
Plate size (mm): 135x110
Bolt hole distance (mm) ): 105x80
Mounting hole (mm): 11
Stroke (mm): 68
Swing + wheel: 193
Bearing type: Kogellager
Tire hardness: 70° Shore A
Temperature: -20 / +85
Running surface: Elastic black vulcanized rubber tire, with the shock-absorbing rubber tire properties and low rolling resistance.
Rim material: Made of high-quality cast aluminum, corrosion-resistant
Wheel type: Swivel castor
Attachment: Plate attachment
Fork material: Zinc plated
