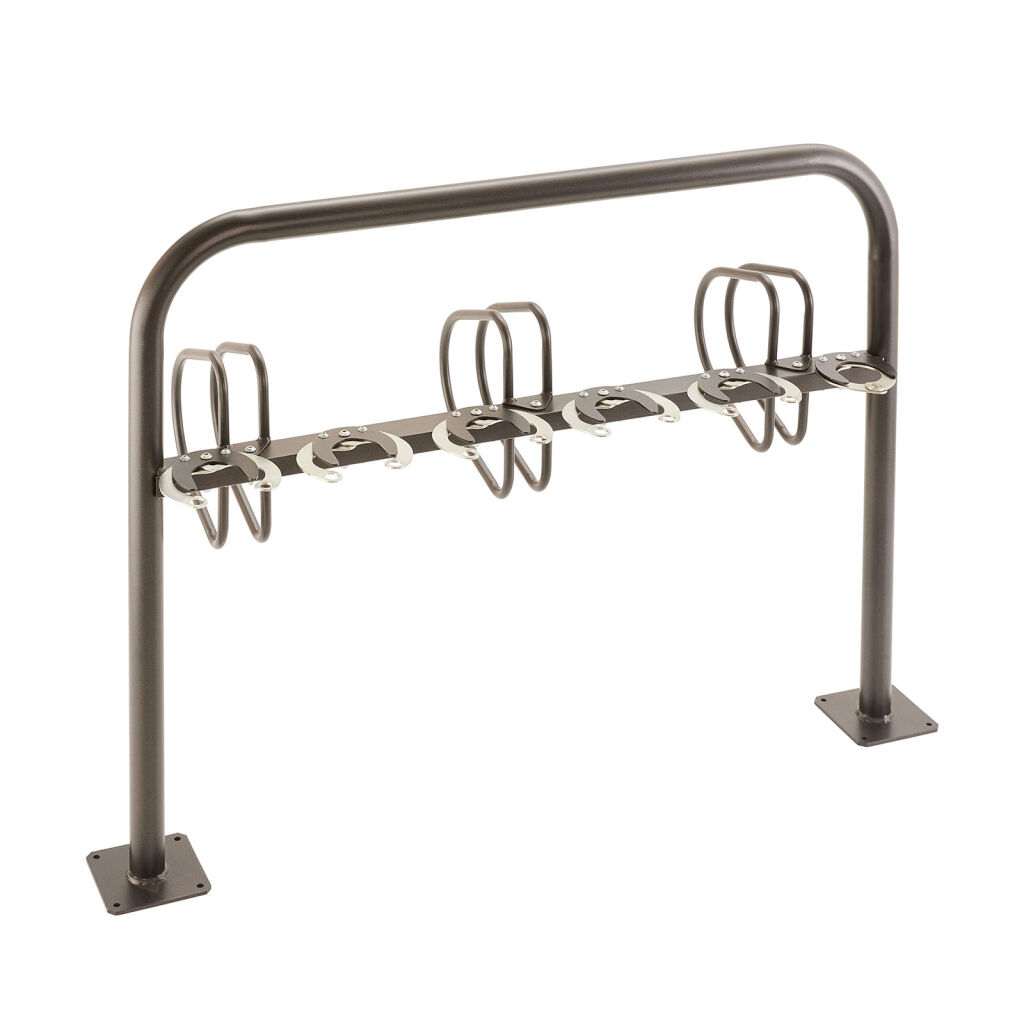

Cycle racks bicycle/scooter rack 9 pieces

Implementation 9 pieces|W: 1360, D: 430, H: 930 (mm)|Article code: 207-M093C

Storage Rack for 6 scooters + 3 bikes. Allows you to store 6 scooters on one side and 3 bikes on the other

- Scooter stems are held by a clip pinching system that can be secured by a cable lock or U lock (not supplied) – allows scooter stems Ø 70 mm max
- The bike side device allows the bike to be held by the front wheel and secured by an anti-theft device.
- Ground bolting by means of 2 attachment plates 15cmx15cm (fixings not supplied)
- Material: steeltube Ø 50 mm anthracite black polyester powder paint – antirust + light grey clips
- Scooters: Ø of the hole for the lock : 20 mm
- Attachment plate 15 x 15 cm with 4 fixing holes Ø11 mm
- Recommended fixation: 8 screws for floor fixing (not supplied)
- For concrete floor: plastic dowels Ø 10 mm, minimum length 60 mm
- For tarmac floor: chemical seal dowels Ø 10 mm max (as Ø 11 mm holes)
- For wheels max. 55mm (for the bikes)
- Bike racks: tube Ø 16 mm, thick. 1 mm (delivered unassembled) with anti-theft system
- Dimension useful: 126 x 43 x Height93 cm
- Dimension overall: 136 x 43 x Height93 cm
- Weight: 23 kg
