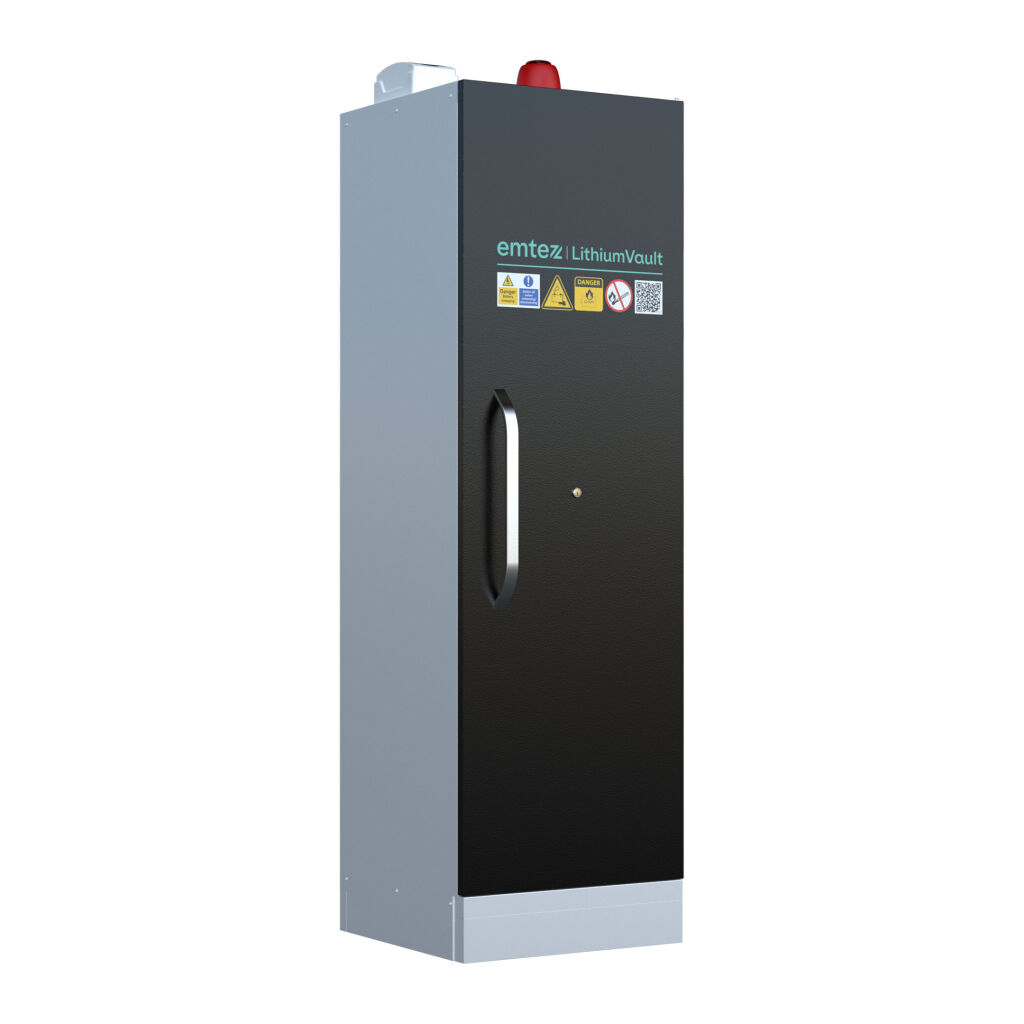

Lithium cabinet storage and charging space for lithium batteries
W: 595, D: 600, H: 2150 (mm)|Article code: 1947421
Price per item
:
€ 5.355,95
€ 6.480,70 inc. VAT
Quantity
Specifications
Article code:
1947421
Width (mm)
595
Internal width (mm)
496
Height (mm)
2150
Internal height (mm)
1540
Depth (mm)
600
Internal depth (mm)
446
Weight (kg)
210
Loading capacity (kg)
360
Volume (ltr)
60
Load capacity per shelf (kg)
60
Material
steel
Colour
black
Surface treatment
electro-galvanized
Front
1 closed hinged door
Base
base
Type
Lithium cabinet
Implementation
storage and charging space for lithium batteries
Type of shelf
grid
Number of shelves
4 shelves
Fire resistant
90 minutes
Certification
CE certified
Norm
EN 14470-1
Article arrangement
New
EAN Code (Gtin):
8719424256765
Description
LithiumVault 6-compartment charging cabinet, 1-door, high.
Cabinet designed to store and charge lithium-ion batteries in 6 separate compartments without fire safety features. Certified for 90 minutes of fire resistance according to standard EN 14470-1.
- 90 minutes of fire resistance.
- Compliant with EN14470-1 TYPE 90.
- In the event of a fire in the cabinet, the rock wool insulation panels, whose fire resistance has been validated for 90 minutes by a destructive test according to standard EN 1363-1, provide protection against thermal hazards pending the intervention of the fire brigade.
- Steel structure.
- Cabinet with transport feet and plinth.
- Internal melamine finish, highly resistant to chemical and aggressive vapours.
- Door closing system with thermofuse at 50°C.
- Automatic fire damper on air inlet and outlet, closes at 70°C.
- Spark-proof hinges.
- Painted steel drip tray on the floor.
- Smoke and temperature detector.
- Visual and audible alarm.
- 6 compartments with electronic code lock per compartment.
- 6 sockets with 3 charging points each.
- Maximum power: 3.68kW.
- 16A differential circuit breaker, 3G2.5mm² cable section and 230V mono type E.
- Compartment size 495 x 420 x 160 mm
- Door locks: 1 (2 x keys supplied)
